Revvity

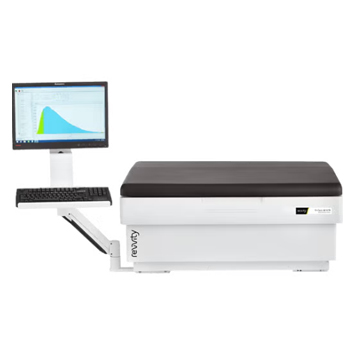

Tri-Carb liquid scintillation counters
With a wide variety of flexible options, the Tri-Carb liquid scintillation counter is optimal for everything from basic research to advanced, low-level environmental analysis. Not only are these detectors capable of meeting or exceeding the requirements of your most demanding applications, but they’re also backed by our experience and innovation in liquid scintillation analysis for more than 60 years.
Standard features
- TR-LSC (Time-resolved Liquid Scintillation Counting) for high sensitivity, low background liquid scintillation counting
- Quanta Smart™ Software a robust multitasking, easy networking environment with unlimited assays in a secure multiuser environment
- Spectra Works 2 spectral analysis package that determines optimal counting regions, and calculates figure of merit automatically
- Dynamic color correction ensures accuracy of tracking lower energy sample spectra over a wide quench range
- Auxiliary Spectrum Memory stores rejected events for future analysis
- Bi-directional sample conveyer with a capacity of up to 408 (20mL vials) or 720 (4 or 7 mL vials)
- Operational-status LED indicator for clear assay status updates at a glance
- Luminescence Detection Reporting percent luminescence is flagged on printout to alert user of possible sample problems
- Direct DPM determines single-label DPM in any cocktail without the use of quench standards
- 15 Quick Count protocol flags with the flexibility to define unlimited assays
- Fold-away ergonomic arm adaptable to enter data either sitting or standing
- Built in Computer with Windows 10 Operating System
Additional Options
- Replay reanalyzes sample counts without recounting samples
- Varisette™ sample cassette for intermixing vial sizes without special adapters
- Single/Dual DPM utilizes the conventional and proven isotope specific quench correction curve technique
- Luminescence Correction removes sample counts induced by luminescence in the sample
Specifications
Physical Specifications
| Dimensions | 103.0 cm (W) x 81.0 cm (D) x 47.0 cm (H) |
| Weight | 217.0 kg |
Other Specifications
| 21CFR Compatible | Yes |
| Brand | Tri-Carb Liquid Scintillation Counter |
| Model | Tri-Carb A4810TR |
| Radioisotope | Ba-133 |

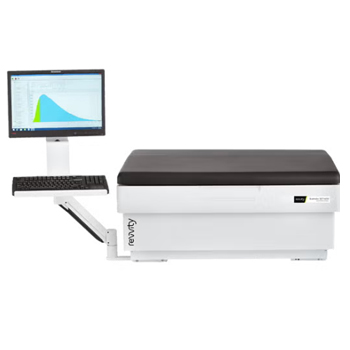

Quantulus GCT liquid scintillation spectrometer
The Quantulus GCT liquid scintillation counter is a fully loaded benchtop instrument with unsurpassed performance for measuring man made, cosmic and other natural radionuclides. Patented GCT technology combined with BGO guard background reduction accurately measures near-background sample activity.
Exclusive standard features
- Patented Bismuth Germanium Oxide (BGO) and Guard Compensation Technology (GCT) :- Enhances discrimination against background yielding the highest E2/B values available in a multipurpose liquid scintillation counting system
- Time-Resolved Liquid Scintillation Counting (TR-LSC) :- For high sensitivity, low background liquid scintillation counting
- Quanta Smart™ Software :- A robust multitasking, easy networking environment with unlimited assays in a secure multiuser environment
- Alpha Beta Separation :- Uses Dual Pulse Shape Analyzer (PSA) Discriminator and Histogram to improve accuracy for mixed and unknown samples
- Spectra Works 2 :- Spectral analysis package that determines optimal counting regions, and calculates figure of merit automatically
- Enhanced Instrument Performance Assessment (IPA) :- Monitors performance metrics for the life of the instrument
- Replay :- Reanalyzes sample counts without recounting samples
- Dynamic Color Correction :- Ensures accuracy of tracking lower energy sample spectra over a wide quench range
- Auxiliary Spectrum Memory :- Stores rejected events for future analysis
- Bi-directional Sample Conveyer :- Has a capacity of up to 408 (20 mL vials) or 720 (4 or 7 mL vials)
- Varisette™ :- Sample cassette for intermixing vial sizes without special adapters
- Operational-status LED Indicator :- For clear assay status updates at a glance
Additional standard features
- Luminescence Detection flags percent luminescence to alert user of possible sample problems
- Luminescence Correction adjusts for chemiluminescence interference
- Direct DPM determines single-label DPM in any cocktail without the use of quench standards
- Temperature Control maintains optimum conditions for a variety of samples
- 60 Quick Count protocol flags with the flexibility to define unlimited assays
- Fold-away ergonomic arm adaptable to enter data either sitting or standing
- Built in Computer with Windows 10 Operating System
Specifications
Physical Specifications
| Dimensions | 103.0 cm (W) x 112.0 cm (D) x 47.0 cm (H) |
| Weight | 238.0 kg |
Other Specifications
| 21CFR Compatible | Yes |
| Brand | Quantulus GCT™ Liquid Scintillation Counter |
| Model | Quantulus GCT™ 6220 |
| Radioisotope | Ba-133 |
| Unit Size | 1 Each |

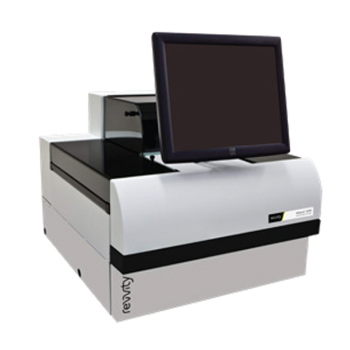

WIZARD2 automatic gamma counter
Whatever your application need, Wizard2 delivers superior gamma counting performance. Today’s laboratories are pressured to do more with less – fewer resources, less time and tighter turnaround. Wizard2 gamma counters offer enhanced features to make sure you’re up to the challenge now and in the future.
Performance features to future-proof your lab
- Simplicity :- Easy viewing and editing of instrument performance parameters such as protocol definition, conveyor movement, general settings and instrument diagnostic settings.
- Fully Automated Data Analysis :- MyAssays® Desktop Pro with QA software for RIA/IRMA and custom data analysis and functionality that lets you easily create and transfer custom reports
- STAT :- Allows high priority, interrupted sample measurement
- Networkability :- Wizard2 instrument include Ethernet connections to easily share and analyze your data
- 21 CFR Part 11 Compatibility :- With optional MyAssays® Desktop Pro Security software, you can automate your audit trail for electronic record and signature compliance
- More Choices Than Ever :- From routine counting to more sophisticated research to customer validated clinical solutions in a regulated environment, there’s a configuration that’s right for your lab
- Wizard2 Result Viewer :- Allows data viewing and export of sample data, Instrument Performance Assessment™ (IPA), normalization and spectral data
- Sample Vial Barcode Option :- Easy to positively identify each sample vial using a barcode label attached to the top of each vial
Benefits
- Choice of models -available with 1, 2, 5 or 10 detectors with 550 sample capacity and 5 and 10 detectors with 1,000 sample capacity.
- Compact footprint -the 550-sample Wizard2 is the smallest automatic 10-detector gamma counter available. Its 65 x 77 cm (25.6 x 30.3 in) footprint will help you make the most of your lab space.
- Counts manually -Wizard2 can be converted into a manual multidetector counter with a single command. In manual mode, sample volumes up to 5 mL, such as LSC minivials, can be measured or flow cell determinations made.
- Samples always visible to user -with 2470 Wizard2, samples are never out of your sight. All parts of the counter are very easy to access.
- Ideal for key gamma emitters -an energy range up to 1,000 keV allows studies involving various nuclides.
- Ideal for RIA and IRMA studies -all RIA tube-based studies can be performed with Wizard2 instruments. The integrated software package allows efficient data analysis for different RIA applications.
- Ideal for chromium release studies -no crosstalk from samples on the conveyor means that the Wizard2 is ideal for working with higher energy isotopes such as Cr-51. With Wizard2, the crosstalk figures for chromium are two orders of magnitude better than in conventional multidetector counters employing through-hole detectors.
- Isotope library contains information for 45 radionuclides
Specifications
Physical Specifications
| Dimensions | 650.0 mm (W) x 770.0 mm (D) x 729.0 mm (H) |
Other Specifications
| 21CFR Compatible | Yes |
| Brand | Wizard2 |
| Detector Type | 2 Detectors |
| Model | Wizard2 2470-0020 |
| Sample Size | 550 |
MicroBeta2 plate based liquid scintillation and luminescence counters
Providing coincidence counting, a unique patented configuration with two photomultiplier tubes that simultaneously detect signal, the MicroBeta2 system ensures high efficiency and extremely low background for a variety of radionuclides. Also, it features time-resolved liquid scintillation counting (TR-LSC), delivering improved counting performance for opaque plates where traditional coincidence counting isn’t possible.
More assays, from one powerful system
- Advanced Detection :– Enables detection of beta and gamma isotopes, as well as glow luminescence
- Filtration-based Receptor Binding Assays :– Deliver utmost sensitivity using either UniFilter plates or MicroBeta filtermats
- Solid-phase Homogeneous Assays :– Best-in-class performance in all solid scintillation assays, including beadbased scintillation proximity assays
- Cell Proliferation :– Analyze cell proliferation through filter-based 3H-labeled thymidine uptake
- Cell Cytotoxicity :– 51Cr release assays for cell cytotoxicity using LumaPlate technology or liquid scintillation counting (LSC)
- Reporter Gene Assays :– Glow capabilities for dual reporter gene assays using luciferase and beta lactamase
- Metabolic Studies :– HPLC fraction measurements using LumaPlate technology or traditional cocktail-based approaches in 4-mL tubes
- Liquid Scintillation Counting :– Scaled down traditional vial-based liquid scintillation counting assays to microplates
- Wipe Test :– No need to reserve a second counter for monitoring contamination in your laboratory
- More Options :– Luminometric ELISAs, kinase assays, radioimmunoassays (RIAs), and many others
Consumables and peripherals optimized to get you results :
- Plate Capacity: 16
- Plate Formats: 24/96 well
- Microplate scintillation and luminescence counter – Microplates in 24-, 96-, and 384-well formats; rigid opaque plates for luminescence assays; and isoplates and flexible plates for liquid scintillation counting with cocktails
- Filter plates, LumaPlate, and more
- Choose the right filter for your assay from different filter plates like UniFilter plates, or MicroBeta2 -specific filtermats
- Scale down your vial counting assays with LSC minivials (4 mL) to improve throughput
- Eppendorf® microtubes, up to 2 mL
Specifications
Physical Specifications
| Dimensions | 433.0 mm (W) x 645.0 mm (D) x 609.0 mm (H) |
Other Specifications
| 21CFR Compatible | Yes |
| Brand | MicroBeta |
| Detector Type | 1 Detector |
| Model | Microbeta 2450-0010 |
Model A307 sample oxidizer
Determination of 14C and 3H content using sample combustion in a PerkinElmer Sample Oxidizer has gained worldwide acceptance as the method of choice for many applications. The full product line of oxidizer reagents and supplies recommended are designed for use with PerkinElmer’s product Sample Oxidizers to ensure superior performance and consistently reliable results.
Glass Vials
Glass provides unparalleled optical clarity (good visibility) and is chemically inert, making it suitable for use with aggressive reagents and solvents. However, glass vials can break when falling on the ground, increasing the risk of contamination.
Borosilicate (Pyrex) glass is preferred due to its lower content of potassium, as compared with soda-glass. Potassium-40 is the largest contributor to background in glass vials. A maximum volume of 20 mL is fixed due to the dimensions of current photomultiplier tubes (2 inch diameter).
| Product Number | Description | Nominal Volume | Caps |
| 6000167 | Pico Glass Vial | 7.0 mL | Foil-lined urea screw caps |
| 6000096 | Econo Glass Vial | 20.0 mL | Foil-lined urea screw caps |
| 6000097 | Econo Glass Vial | 20.0 mL | Poly screw caps |
| 6000128/6000129/6000349 | High Performance Glass Vial | 20.0 mL | Foil-lined urea screw caps |
| 6000134 | High Performance Glass Vial | 20.0 mL | Poly-cone lined urea screw caps |
| 6001009 | Oximate Vial | 20.0 mL | Foil-lined urea screw caps |
